When it comes to home improvement, few upgrades offer the immediate blend of lifestyle enhancement and practical utility quite like high-quality retractable screens. Whether you want to welcome a gentle breeze through your front door without inviting in unwanted insects, protect your sprawling multi-fold patio doors, or transform your outdoor lanai into an insect-free sanctuary at the touch of a button, retractable screens are the premier modern solution. Unlike traditional fixed screens that permanently block your view and detract from your home’s architectural beauty, retractable screens seamlessly glide into low-profile aluminum housings when not in use, completely disappearing from sight.
However, the secret to the flawless operation, sleek appearance, and long-term durability of any premium retractable screen lies in a single, critical factor: precision measurement. Because high-end retractable screens are custom-manufactured to the exact specifications of your unique architectural openings, there is no room for guesswork. A single millimeter of error can mean the difference between a screen that glides like silk and one that binds, gaps, or fails to latch properly.
In this comprehensive guide, we will walk you through the essential tools, pre-measurement checklists, and exact step-by-step formulas required to measure your home for the entire suite of RetractScreens.com products—from elegant single doors and expansive French doors to versatile windows and motorized grand patio systems.
Part 1: The Pre-Measurement Preparation Checklist
Before you pull out your measuring tape, you must set yourself up for success. Professional installers follow a strict preparation protocol to eliminate common human errors. Gather the following simple but vital tools before beginning:
-
A Stiff Steel Tape Measure: Crucial Pro-Tip: Never, under any circumstances, use a fabric or plastic sewing tape measure. Fabric and plastic stretch and sag over long distances, which will instantly introduce inaccuracies into your data. A high-quality, rigid steel tape measure is non-negotiable for capturing precise linear distances.
-
Notepad and Pen (or Digital Spreadsheet): Never rely on your memory. Write down every dimension immediately as you read it off the tape. Label each set of numbers clearly (e.g., "Kitchen Window - Width," "Living Room French Doors - Height").
-
A Smartphone Camera: Snap a quick photo of the door or window frame you are measuring. If you have questions later when placing your order, sharing a photo with our technical support team alongside your measurements makes troubleshooting incredibly easy.
-
The Standard Unit of Precision: While residential construction sometimes uses fractional inches, custom manufacturing thrives on extreme precision. For the absolute best results, record your dimensions in millimeters (mm) or down to the nearest 1/16th of an inch.
The Golden Rule of Measuring: The Three-Point System
Frames settle, wood warps, and buildings shift over time. A doorway or window opening that looks perfectly square to the naked eye is almost always slightly irregular. To combat this, always measure three distinct points for every dimension:
-
For Width: Measure across the Top, the Middle, and the Bottom.
-
For Height: Measure down the Left Side, the Center, and the Right Side.
Part 2: Understanding Your Installation Style – Recess Fit vs. Face Fit
Before recording final numbers, you must determine where and how the screen housing and tracks will be mounted to your frame. There are two primary installation methods:
1. Recess Fit (Reveal Fit)
A Recess Fit involves installing the entire retractable screen system inside the existing door or window jamb. When the screen is retracted, the aluminum housing sits flush inside the frame, making it virtually invisible from both the interior and exterior.
-
The Depth Requirement: To achieve a clean Recess Fit, your frame must have a minimum unobstructed depth (typically 35mm to 40mm, depending on the product model) to accommodate the screen cassette and mounting holes without interfering with the operation of the primary door or window.
-
The Recess Golden Rule: When measuring for a Recess Fit, always record the SMALLEST of your three measurements for both width and height. This ensures the custom-built metal frame will fit inside the tightest point of the opening without jamming.
2. Face Fit (Surface Mount)
If your door or window frame lacks the necessary depth for an internal mount, or if structural handles or crank mechanisms block the inside of the frame, a Face Fit is your go-to solution. In a Face Fit, the screen housing and tracks are mounted directly onto the face of the trim or architrave surrounding the opening.
-
The Face Fit Golden Rule: When measuring for a Face Fit, you are measuring the external perimeter of the opening where the screen frame will attach. For this style, always record the LARGEST of your measurements, and you will often need to add the specific widths of the screen housing and tracks to your final numbers to ensure the screen completely clears the open space.
Part 3: Step-by-Step Measuring by Product Category
Different architectural openings require tailored measurement approaches. Let's break down the exact protocols for the complete product lineup at RetractScreens.com.
1. Retractable Screens for Single Entry & Sliding Patio Doors
Single doors (including front entry doors, garage service doors, and traditional sliding glass patio doors) are the most frequent candidates for a retractable screen upgrade.
-
Step A: Check for Obstructions: Look closely at the door frame. Are there protruding door handles, deadbolts, decorative kickplates, or security sensors that stick out past the frame plane? If these objects infringe on the path of the screen mesh, you must either opt for a Face Fit or factor in an additional adapter shim to push the screen track past the obstruction.
-
Step B: Measure the Width: For a standard Recess Fit, place your steel tape inside the left jamb and extend it to the right jamb. Take three readings: top, middle, and bottom. Write down the smallest number.
-
Step C: Measure the Height: Position your tape at the underside of the top lintel/jamb and extend it down to the top of the threshold or sill. Take three readings: left, center, and right. Write down the smallest number.
-
Note for Sloped Thresholds: If your sliding door has a sloped exterior threshold, note whether the bottom track will sit on a flat surface or require a specialized sill adapter to keep the system level.
2. Retractable Screens for French & Double Doors
French doors add undeniable elegance to a home, but screening them can be tricky with traditional products. RetractScreens.com offers a dual-cassette system for double doors: two housings are mounted on either side of the opening, and the screens meet in the center via a secure magnetic latching profile. Alternatively, you can lock one screen in place with flush bolts and operate only one side for daily use.
-
Measuring Protocol: The measurement protocol for French doors mirrors the single door process, but accuracy across the massive width span is paramount.
-
Measure the total interior width from the far-left jamb to the far-right jamb at the top, middle, and bottom. Record the smallest width.
-
Measure the total vertical height from the top jamb to the sill at the left, center, and right. Record the smallest height.
-
Squareness Check: Because double doors cover a wide expanse, check if the opening is radically out-of-square by measuring diagonally from the top-left corner to the bottom-right corner, and from the top-right corner to the bottom-left corner. If the two diagonal numbers differ by more than 8-10mm, reach out to our team so we can assist with custom shimming advice.
3. Retractable Window Screens (Pull-Down & Pull-Across Models)
Retractable window screens are perfect for awning, casement, single-hung, and double-hung windows. They can pull down vertically from a top-mounted housing or glide horizontally across from a side-mounted housing.
-

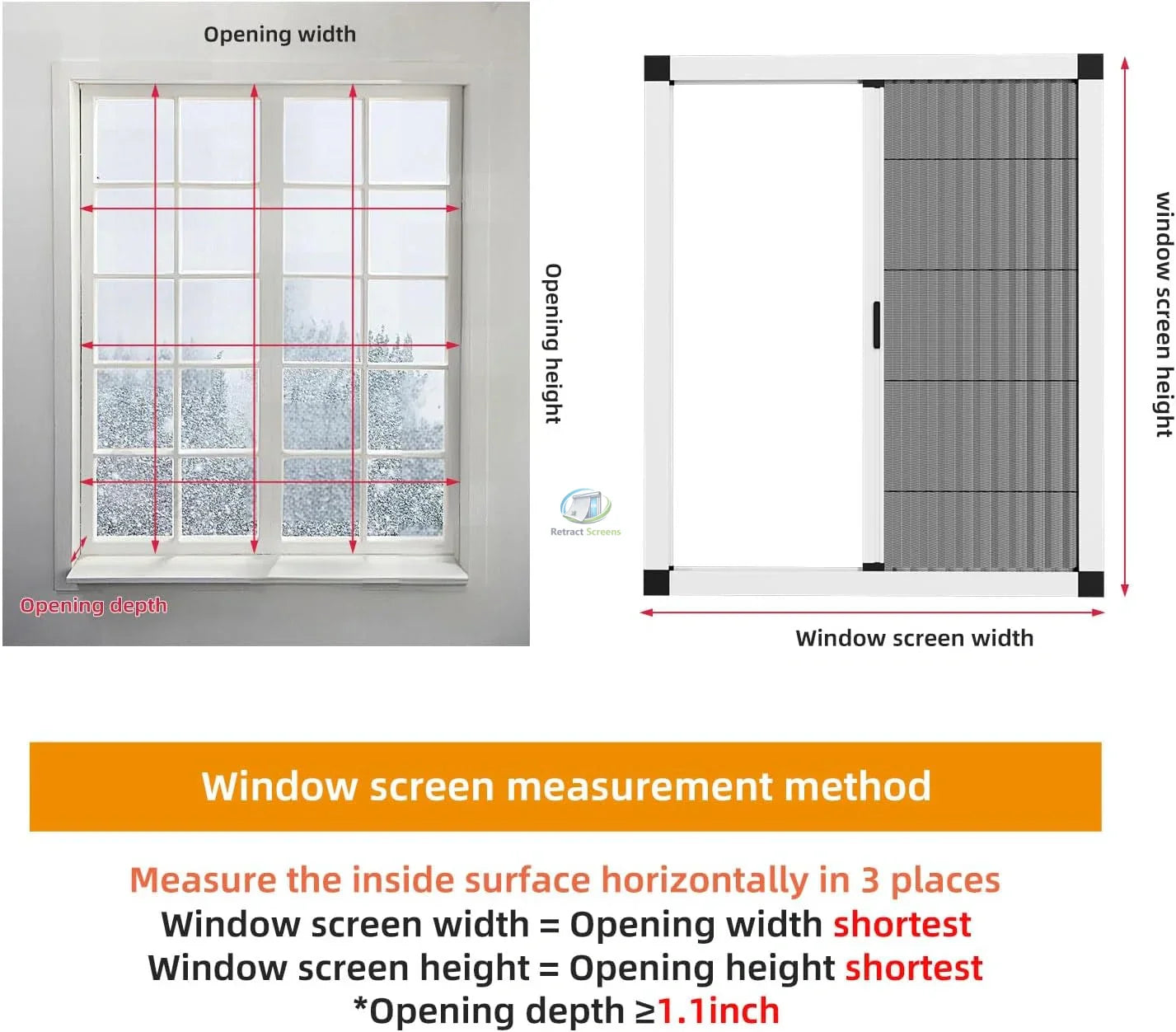

For Recess Fit Windows: Measure the inside width (top, middle, bottom) and inside height (left, center, right). Record the smallest of both sets of numbers. Ensure that window crank handles, latches, or winders do not protrude into the 35mm-40mm clear zone required for the screen cassette.
-
For Face Fit Windows: If your windows crank outward and the handle sits inside the frame, a Face Fit on the inside architrave is ideal. Measure the exact outer dimensions of the window trim where you plan to fasten the tracks, capturing the largest dimension to ensure full perimeter coverage.
4. Large-Span Pleated & Folding Architectural Screens (Bi-Fold Glass Walls)
Modern luxury homes frequently feature multi-panel bi-fold glass doors or large stacking glass walls that open up entire rooms to the outdoors. To screen these massive architectural marvels, we utilize premium high-capacity pleated or heavy-duty flat retractable screen systems.
-
Measuring the Grand Span: Because these systems can span up to several meters wide, tracking sag over the distance is a high risk. Have a helper hold the steel tape measure perfectly taut.
-
Take your three width measurements across the extreme expanse. Even a tiny dip in the middle can alter your numbers. Record the absolute smallest width.
-
Take vertical height measurements at 1-meter intervals across the entire opening. Because floors can slope or headers can deflect under heavy roof loads, identifying the lowest vertical height point is vital. Record the smallest height.
5. Smart Motorized Power Screens (Patios, Porches, & Lanais)
For large outdoor living areas, covered patios, balconies, or garage openings, motorized power screens provide shade, privacy, and insect control at the push of a button. These systems use robust, heavy-duty aluminum tracks and large overhead housings that are typically surface-mounted (Face Fit) to structural columns and headers.
-
Step A: Identify Mounting Surfaces: Determine if you are mounting to wood, stucco, concrete, or brick. Ensure the mounting surfaces are structurally sound and flat.
-
Step B: Measure the Structural Width: Measure the horizontal distance from the inside or outside face of the left supporting column to the right column. Take top, middle, and bottom readings.
-
Step C: Measure the Structural Height: Measure from the underside of the structural beam/header down to the finished patio floor (concrete, pavers, or decking). Take readings at multiple points across the span to check for floor slope.
-
Power Source Access: Along with dimensions, identify where your electrical power source (GFI outlet or hardwired junction box) is located relative to where the motorized screen motor will sit (Left-hand or Right-hand side of the top housing).
Part 4: Final Verification and Avoidable Traps
Before clicking "Submit" on your custom order, run through this quick troubleshooting checklist to avoid the most common DIY mistakes:
-
Don't Measure Old Screens: Never measure an old, warped mesh screen or a generic magnetic screen door that you are replacing. Always measure the solid structural door or window frame itself.
-
Account for Tilted Openings: Use a bubble level to check your jambs. If an opening is severely out of plumb due to foundation settling, structural adjustments or shimming will be necessary before installing your retractable screen frame.
-
The "Matchbox" Depth Test: If you are unsure whether you have enough depth for a clean Recess Fit, take a standard small block of wood or a matchbox trimmed to 35mm deep. Hold it against the inside of your door frame and close the main door completely. If the door closes and seals perfectly without striking the block, you have plenty of room for a beautiful, seamless Recess Fit!
Summary Table for Ordering Precision
| Product Type | Preferred Fit | Measurement Logic to Record | Key Obstruction to Look For |
| Single / Sliding Doors | Recess Fit | Smallest Width & Smallest Height | Door handles, deadbolts, locks |
| French / Double Doors | Recess Fit | Smallest Width & Smallest Height | Center astragal, flush bolts, levers |
| Window Screens | Recess Fit | Smallest Width & Smallest Height | Window cranks, locking latches |
| Bi-Fold / Stacking Walls | Recess Fit | Smallest Width & Smallest Height | Header deflection, uneven flooring |
| Motorized Patio Screens | Face Fit | Largest Structural Area / Exact Opening | Column architectural trim, floor slope |
By taking your time, using a rigid steel tape measure, and rigorously executing the three-point measurement system, you will guarantee that your custom-tailored RetractScreens.com solution arrives built to perfection. Beautiful views, natural airflow, and a completely insect-free home are just a few precise millimeters away!
