Focus Areas: Next-Gen Product Engineering, Embedded Global Catalog Visuals, Motorized Large-Span Integrations, Site Surveying Methodologies, and Asset Maintenance Protocols.
1. The Evolution of Fenestration & Invisible Screening
Across contemporary residential and commercial developments, expansive glass fenestration—ranging from oversized casements to multi-panel pass-through serveries—serves as a cornerstone of modern architectural light management. However, fixed mesh installations degrade visual transparency by up to 35%, trap environmental dust, and permanently disrupt interior daylighting design.
Retractable screen engineering addresses this compromise through dynamic spatial integration. Utilizing compact aluminum housing cassettes and high-tensile composite mesh, these systems store the screen neatly out of sight when not active, preserving clear sightlines and maximum solar gain while providing instant insect protection on demand.
2. Comprehensive Global System Taxonomy
The global product portfolio at RetractScreens.com categorizes window screening systems based on operational trajectory, structural mechanics, and frame geometry.
Model Configuration A: Horizontal Lateral-Pull Roller Screen
-
Structural Mechanics: Operating via a side-mounted vertical cassette, the screen mesh travels horizontally along parallel top and bottom tracks. Constant tension is maintained by an internal spring spool, securing tightly into a full-height magnetic receiver rail.
-
Primary Fenestration Fit: Side-hinged casements, horizontal sliding windows, and exterior pass-through kitchen serveries.
-
Engineering Specifications: Extruded T6-grade aluminum housing, UV-stabilized PVC/fiberglass mesh, and continuous pile weather-stripping to eliminate peripheral gaps.

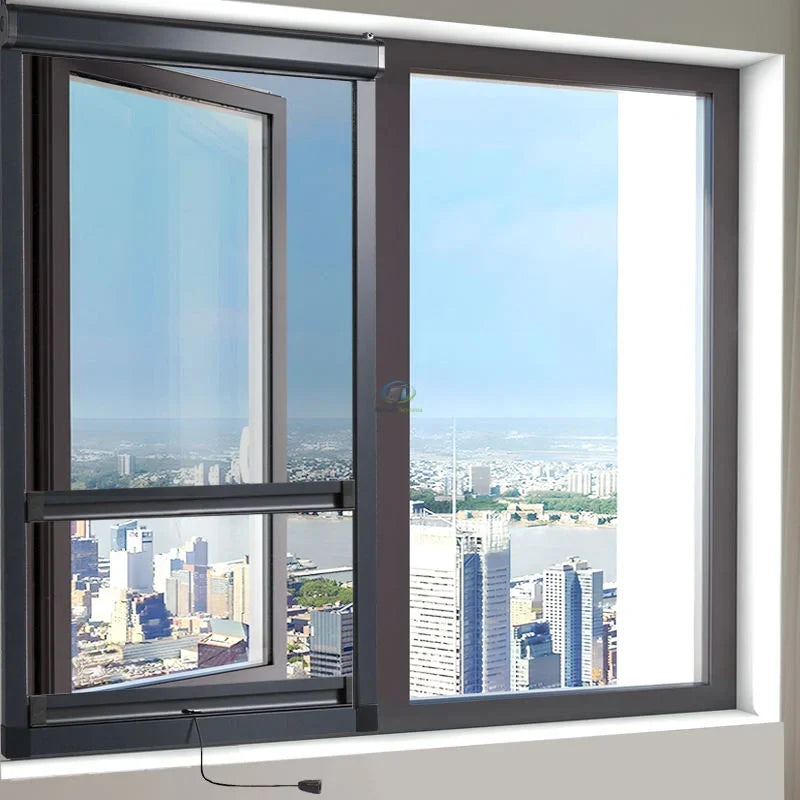

Model Configuration B: Vertical Drop-Down Roller Screen
-
Structural Mechanics: Mounted along the upper head jamb, this system extends downward vertically. It anchors at the lower window sill via an ergonomic latching threshold, featuring spring-dampened speed limiters for smooth auto-retraction.
-
Primary Fenestration Fit: Awning windows, top-hung hoppers, and vertical double-hung sash windows.
-
Engineering Specifications: Micro-cassette profile for minimal headroom intrusion, wind-retention side channels, and a flexible bottom seal that accommodates minor sill variance.
Model Configuration C: Vertical Pleated (Concertina) Screen
-
Structural Mechanics: Replaces spring-loaded spools with a pleated polyester fabric matrix that collapses accordion-style into the top header. Internal tension cables ensure stable positioning at any intermediate height without snapping back.
-
Primary Fenestration Fit: High-reach awning windows and casements requiring variable airflow control.
-
Engineering Specifications: Zero recoil force, high-strength braided tension wires, and heat-set pleated mesh engineered against sagging.
Model Configuration D: Horizontal Single-Panel Pleated Screen
-
Structural Mechanics: Glides horizontally with a lightweight, push-pull motion. The pleated mesh folds compactly into the side jamb, eliminating bulky circular spring canisters.
-
Primary Fenestration Fit: Medium-span timber casements and architectural pass-through openings.
-
Engineering Specifications: Low-friction floor guide rail, dust-resistant polyester mesh weave, and customizable powder-coated frame finishes matching Qualicoat/AAMA standards.
Model Configuration E: Horizontal Bi-Parting Pleated Screen
-
Structural Mechanics: Features twin side cassettes that deploy toward the center. The two screens join seamlessly via a continuous vertical magnetic strip along the mid-point of the opening.
-
Primary Fenestration Fit: Wide double casements, French windows, and multi-leaf bi-fold servery windows.
-
Engineering Specifications: Independent dual-panel operation, central magnetic seal, and multi-channel wire guidance for large-format stability.
3. Automated & Motorized Large-Span Solutions
When glass installations extend beyond standard manual operational limits—such as wide bi-folds, curtain walls, and multi-slide pocket doors—manual screening mechanisms become impractical. Automated Motorized Screen Systems represent the benchmark for large-format architectural integration, providing effortless protection across grand openings.
Motorized System Advantages:
-
Expansive Span Capability: Single motorized units can cover spans up to 7.0 meters wide and 4.5 meters high without vertical support posts or visual breaks.
-
Smart Building Automation: Integrated with heavy-duty tubular motors (Somfy® / Zigbee / Z-Wave compatible), enabling control via wall switches, smartphone apps, or automated home networks.
-
Zip-Track Edge Retention: Utilizes welded edge-zipper technology running inside sealed side tracks, preventing mesh detachment even during severe wind pressure.
-
Obstacle Detection & Climate Sensors: Smart controllers monitor motor torque; if an obstacle or high wind condition is detected, the drive automatically stops to prevent structural damage.
4. Precision Surveying & Field Measurement Protocols
Custom manufacturing tolerances require exact site verification. Always use an industrial laser measure or calibrated steel tape. All measurements must be noted in millimeters (mm).
Step 1: Mounting Orientation Selection
-
Inside Reveal (Recess Mount): Requires a square window frame with adequate internal depth (35mm–60mm minimum). Record the absolute minimum dimension across all measured points.
-
Surface Mount (Face Mount): Applied when internal jamb depth is insufficient or window hardware protrudes into the reveal. Measure outer frame dimensions including required track and cassette coverage.
Step 2: 3-Point Dimensional Auditing
-
Horizontal Span Check (Width): Measure across the top, middle, and bottom of the opening. For Recess Mounting, record the smallest reading as your ordering width.
-
Vertical Height Check (Height): Measure down the left, center, and right sides of the frame. For Recess Mounting, record the smallest reading as your ordering height.
-
Squareness & Projection Survey: Check diagonal dimensions from corner to corner. A variance exceeding 4mm requires frame shimming during installation. Verify handle clearances and window stay projections.
⚠️ Critical Ordering Guideline: Provide exact, net measured dimensions to the factory. Do not deduct clearance allowances yourself; automated fabrication software calculates precision manufacturing tolerances (typically 2mm–3mm clearance).
5. Preventive Maintenance & Asset Care
Systematic maintenance guarantees long-term mechanical performance, prevents track jamming, and keeps mesh visually clear.
1. Bi-Weekly Surface Cleaning
-
Extend the screen fully.
-
Use a vacuum cleaner with a soft brush head at low power to remove dust and airborne debris.
-
Wipe down outer aluminum extrusions with a damp microfiber cloth.
2. Seasonal Deep Cleaning (Every 3 to 6 Months)
-
Clean the mesh using warm water and a mild pH-neutral detergent solution. Avoid abrasive pads or harsh chemicals.
-
Rinse thoroughly with clean water to eliminate soapy film.
-
MANDATORY STEP: Allow the screen matrix to dry completely before retracting. Storing damp mesh inside a closed cassette causes mildew growth and accelerates spring corrosion.
3. Track Cleansing & Dry Lubrication
-
Clear dirt, sand, and insect debris from lower and upper guide tracks using a narrow brush.
-
Apply a light coat of Dry Silicone Spray inside the side channels once every six months.
-
Never apply wet lubricants (such as WD-40 or grease), as they trap grit and accelerate component wear.
6. Global System Selection Matrix
| System Series | Travel Axis | Mesh Construction | Maximum Recommended Width | Target Fenestration |
| Lateral Roller Screen | Horizontal | Smooth Fiberglass | Up to 1.6 m | Casement, Sliding, Pass-Through |
| Drop-Down Roller Screen | Vertical | Smooth Fiberglass | Up to 1.8 m | Awning, Hopper, Double-Hung |
| Drop-Down Pleated Screen | Vertical | Folded Polyester | Up to 1.8 m | Awning, High-Reach Sash |
| Single Pleated Screen | Horizontal | Folded Polyester | Up to 2.8 m | Large Casement, Timber Windows |
| Double Bi-Parting Screen | Horizontal (Center-Join) | Folded Polyester | Up to 9.0 m | French Windows, Wide Servery |
| Motorised Zip Screen | Vertical / Horizontal | Zip-Locked Mesh Matrix | Up to 7.0 m+ | Bi-Fold Systems, Curtain Walls, Patio Glass |
