French doors add elegance, natural light, and a seamless transition to outdoor living areas. However, because they consist of two actively swinging door panels, standard single screens are impractical. The industry-standard solution is a double-cartridge (center-meet) retractable roller screen door system.

To ensure flawless, whisper-quiet operation and an airtight seal against insects, precision is critical during both measurement and installation. Even a 2mm error can cause the tension system to bind or the magnetic seals to misalign.

This guide provides a professional, step-by-step technical protocol for measuring and installing retractable screens on French doors.

Part 1: Precision Measurement Protocol

Before ordering or cutting profiles, you must determine your mounting style and capture precise physical dimensions.

Step 1: Choose Your Mounting Method

  • Inside Mount (Recessed): The screen system is installed inside the door frame (jamb). This is the cleanest, most integrated look, but it requires a minimum flat jamb depth of 1 to 2 inches (depending on the manufacturer's cassette size) to clear the door handles and hinges.

  • Outside Mount (Surface): The screen system is mounted directly onto the face of the brickmould or architrave trim surrounding the door. Use this method if the interior jamb depth is too shallow or obstructed by existing door hardware.

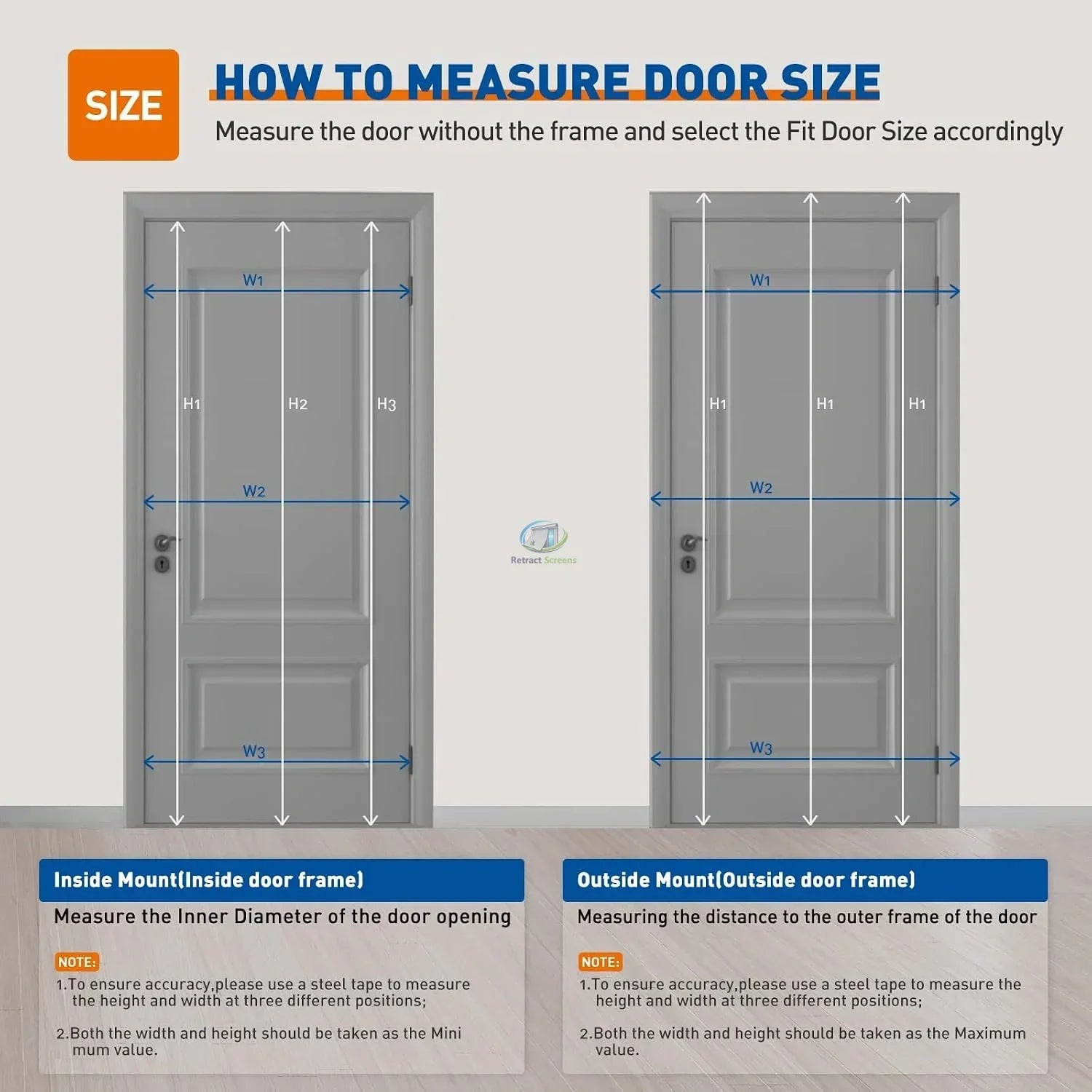

Step 2: Taking the Measurements (The "3-Point Rule")

Never assume a door frame is perfectly square. Wood warps, and foundations settle. Always measure at three distinct points.

Width Measurement:
   [================== Top Width ==================]
   [================= Middle Width ================]
   [================= Bottom Width ================]

Height Measurement:
   | Left  |               | Right |
   | Height|               | Height|
   |       |               |       |

1. Measuring Width ($W$)

  • For Inside Mount: Measure the inside distance from jamb to jamb. Take three measurements: near the top, at the center, and near the bottom. Record the narrowest measurement.

  • For Outside Mount: Measure from the outer edge of the left trim to the outer edge of the right trim.

2. Measuring Height ($H$)

  • For Inside Mount: Measure from the top header jamb down to the sill/threshold. Take three measurements: left side, center, and right side. Record the shortest measurement.

  • For Outside Mount: Measure from the top of the upper trim down to the bottom of the sill.

3. Check for Squareness (3-4-5 Triangle Method)

Measure diagonally from the top-left corner to the bottom-right corner, and from the top-right to the bottom-left. If the two diagonal measurements differ by more than 1/4 inch (6mm), the opening is out-of-square. You will need to shim the tracks during installation to ensure the screen guides run parallel.

Part 2: Step-by-Step Installation Guide

Most professional double-cartridge systems are delivered as a knock-down (CKD) kit consisting of:

  • Two vertical roller cassettes (housing the pre-tensioned screen mesh).

  • One top guide rail.

  • One bottom guide rail (sometimes with low-profile sill transitions).

  • An installation accessory pack (screws, shims, anchors, magnetic center-latch profiles).

Required Tools:

  • Cordless drill/driver

  • High-accuracy spirit level (24-inch minimum)

  • Fine-tooth hacksaw or miter saw (if on-site trimming is required)

  • Silicon lubricant spray

  • Non-permanent marking pencil

1.On-Site Profile Trimming (If Applicable)：Required for adjustable cut-to-fit kits。

If your kit is not pre-cut to the millimeter, measure the top and bottom rails. Deduct the manufacturer-specified width offset of the side cassettes (typically $2\text{-inches}$ per housing) and cut the top and bottom rails cleanly using a miter saw with an aluminum-cutting blade. File down any metal burrs.
2.Assemble the Frame：Create a rigid perimeter skeleton。

Lay the components flat on a clean, non-abrasive surface (like a drop cloth). Slide the top and bottom guide rails into the corresponding receiver caps of the left and right vertical cassettes. Ensure the pull-bars and mesh run smoothly into the tracks before mounting.
3.Dry Fit and Leveling：Verify plumb alignment。

Lift the assembled frame into the door opening. Use a spirit level to verify that the vertical cassettes are perfectly plumb (vertical) and the top/bottom rails are level. This is the most critical step. If the side housings tilt even slightly, the screen will roll up unevenly and telescope, destroying the mesh edge.
4.Secure the Screen Housings：Anchoring to the jamb structure。

Starting with the left side, pre-drill pilot holes through the mounting flange of the cassette. Secure the housing using the provided pan-head structural screws. Repeat the process for the right cassette. If the jamb is out-of-square, place plastic shims behind the housing before tightening the screws.
5.Fasten the Top and Bottom Tracks：Establish the guiding path。

Secure the top guide rail to the header jamb. Then, secure the bottom guide rail to the threshold. Ensure the bottom track is clean of debris. For high-traffic entryways, ensure the low-profile sill ramp is locked tightly against the threshold to prevent tripping.
6.Configure the Locking Mechanism and Slide Stops：Establish the center-meet interface。

Retractable screens for French doors lock in the center. One side is typically kept stationary using integrated locking pins (top and bottom slide bolts), while the other side functions as the active door. Pull both screens to the center to align the magnetic strip seals. Adjust the slide-stops so the magnetic latch aligns perfectly in the middle of the opening.

Part 3: Professional Calibration and Maintenance

Once installation is complete, execute these system checks to guarantee peak performance:

  • Tension Calibration: Pull the active screen out and let it retract. If it retracts too slowly, increase the spring tension on the cassette end-caps (usually adjusted via a flathead screw or tension dial). If it slams loudly, reduce the tension or verify that the hydraulic damper is engaged.

  • Friction Reduction: Lightly spray the inside of the top and bottom guide rails with a high-quality dry silicone lubricant spray. Never use grease or WD-40, as they attract dirt and dust, which act as abrasives against the nylon guide glides.

  • Bi-Annual Maintenance: Vacuum the bottom track regularly. Dirt, pet hair, and small pebbles in the bottom track are the primary causes of torn mesh and derailed pull-bars.
